Overview #

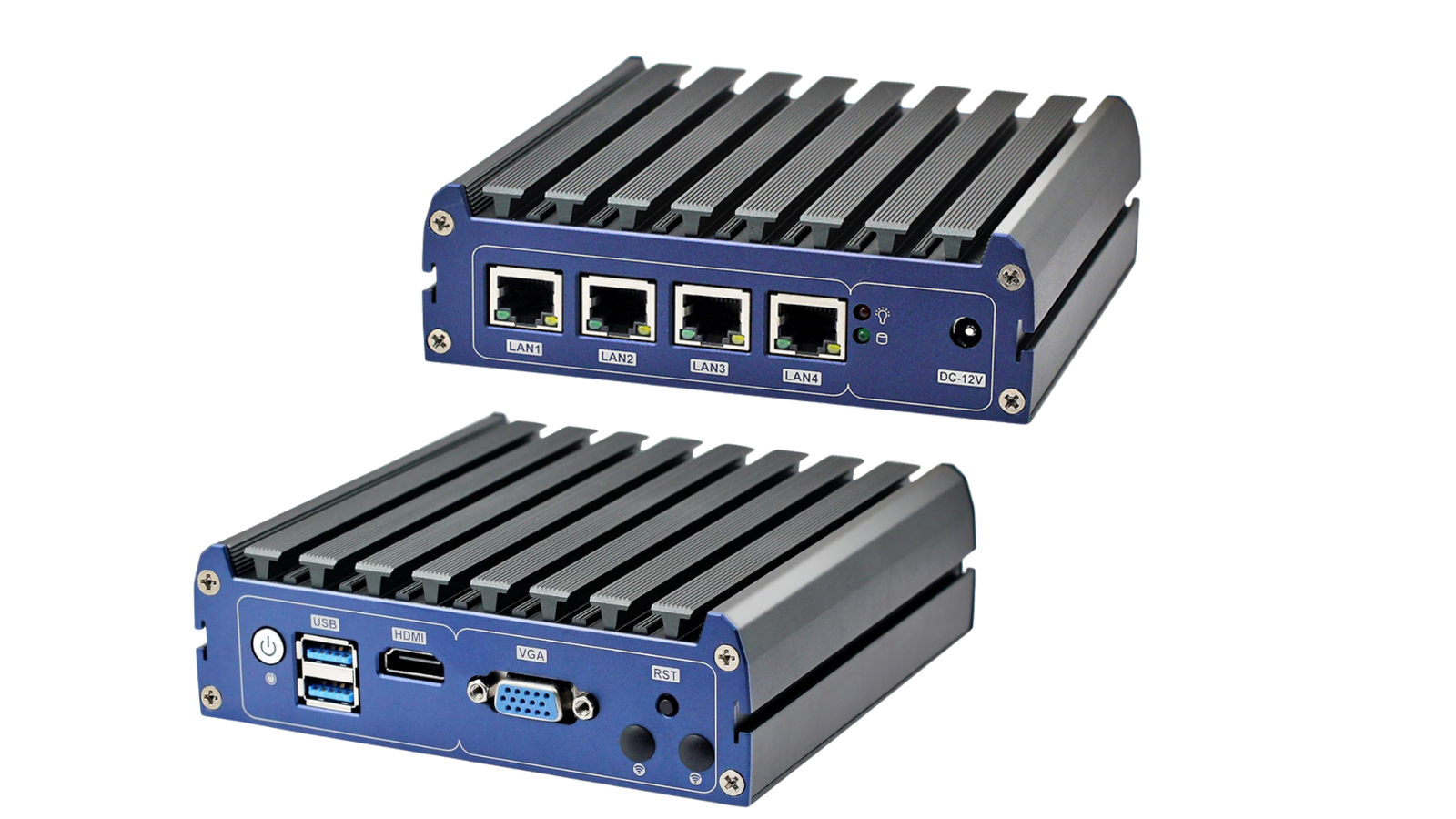

The Shunya N-BOX-J2 is a compact and powerful mini-server designed for various computing needs. Equipped with an Intel® Celeron® J4125 Processor, this mini server offers impressive performance in a small form factor. The system has 8GB Single Channel SO-DIMM DDR4 RAM, 2.5GbE Ethernet ports for network connectivity, and features both SATA and mSATA interfaces for storage and comes with 256GB mSATA SSD. Additionally, the N-BOX-J2 includes HDMI, VGA and USB ports, as well as a Mini PCIe interface for optional WiFi/Bluetooth or 3G/4G modules.
Internal View #

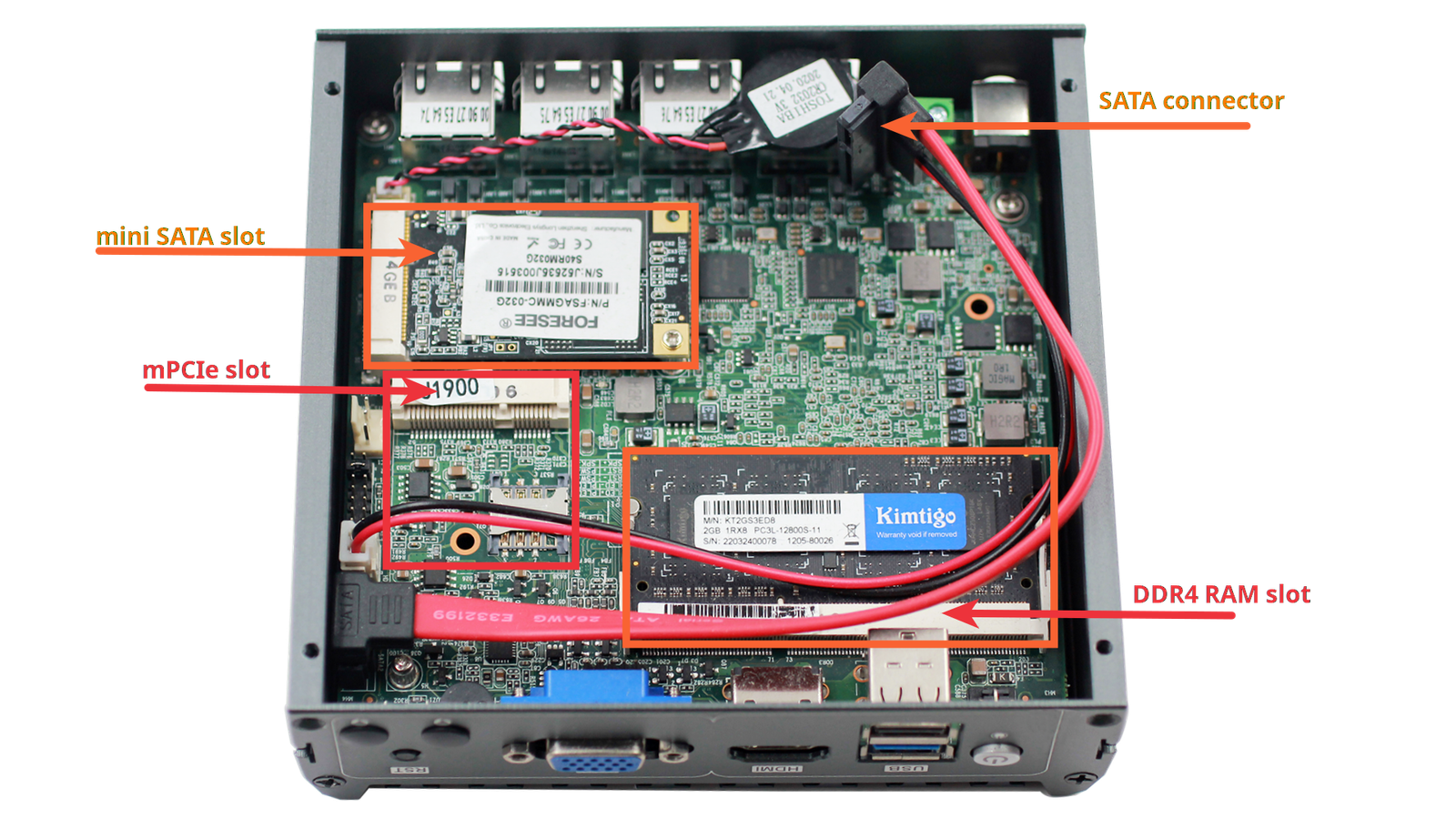

Refer to the annotated photo below to identify the location of different components and connectors within the N-BOX-J2.
CPU #
The N-BOX-J2 model is powered by the Intel® Celeron® Gemini Lake J Series Processors.
- Celeron® J4125
- Frequency: 2.0 GHz to 2.7GHz
- Cores/Threads: 4/4
- Cache: 4 MB
Memory #
The N-BOX-J2 supports Single Channel SO-DIMM DDR4 RAM with compatibility upto 3200 MHz. The system can accommodate up to 8GB of RAM through a single SO-DIMM socket. N-BOX-J2 comes with a DDR4 8GB RAM out of the box. For compatible memory options, consider this link.
Storage #
The N-BOX-J2 series supports both SATA and mSATA interfaces for storage. N-BOX-J2 comes with a 256GB mSATA SSD out of the box. Tested mSATA SSD devices up to 1TB and SATA HDDs up to 1TB have been successfully used. For compatible SSDs, check this link for mSATA SSDs and this link for 2.5-inch SATA HDDs.
Network Interface Controllers (NICs) #
The N-BOX-J2 is equipped with four independent 2.5GbE Intel NICs, ensuring robust and reliable network connectivity.
WiFi #
The N-BOX-J2 features a Mini PCIe interface, providing the option to integrate a WiFi/Bluetooth module for wireless connectivity. Consider this compatible module for wireless networking capabilities.
