How to setup hardware on Shunya N-BOX-S3F

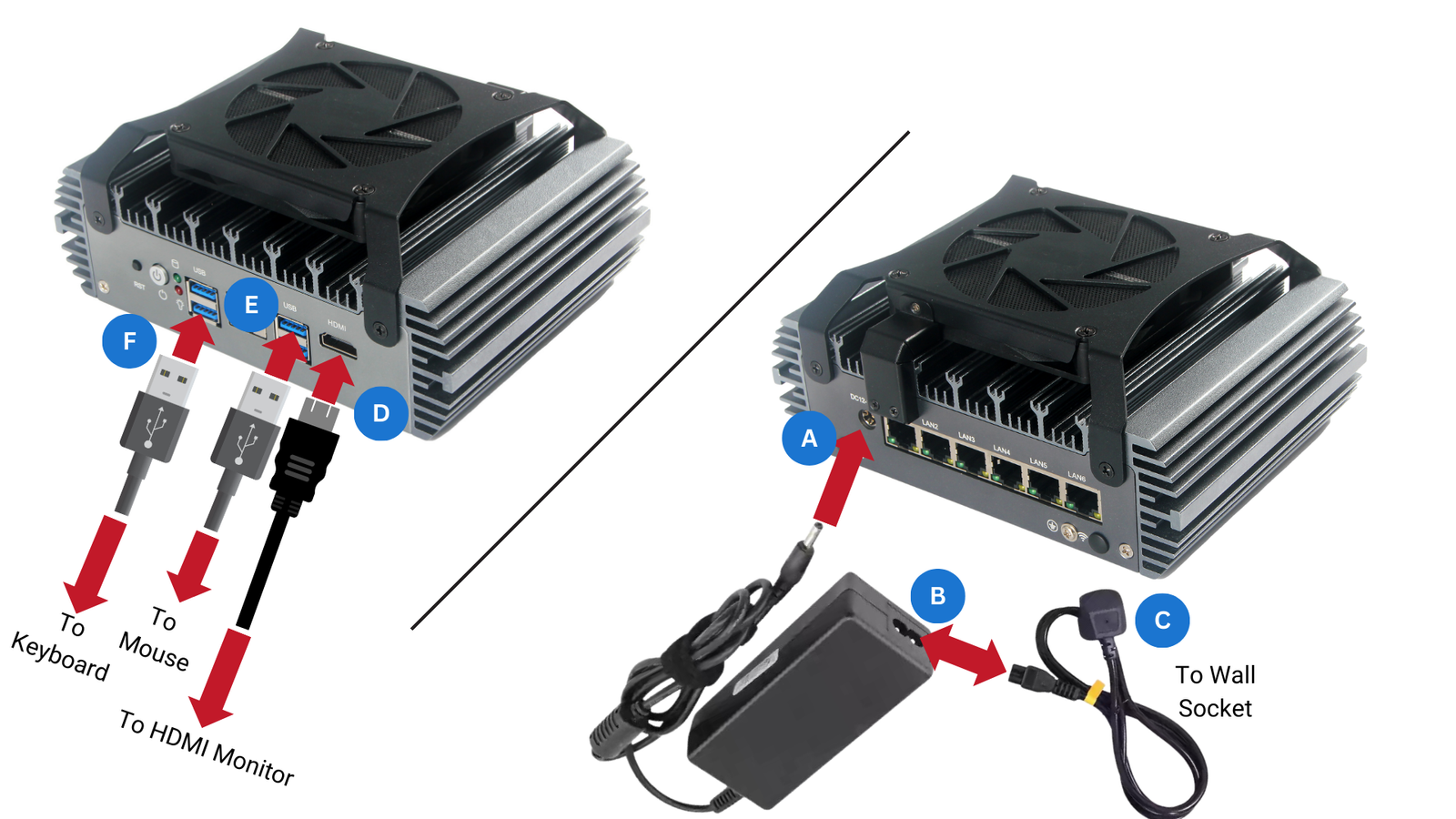

Connecting peripherals #

1. Connect the round tip of the power brick (A) to the power socket located at the back-side of the device.
2. Connect the 3-pin part of the power brick (B) to the power cable.
3. Connect the power cable to the wall socket ( C ).
4. Connect the HDMI cable to HDMI port (D) located at the front-side of the Device.
5. Connect the USB Mouse to USB port (E) located at the front-side of the Device.
6. Connect the USB to Keyboard USB port (E) located at the front-side of the Device.

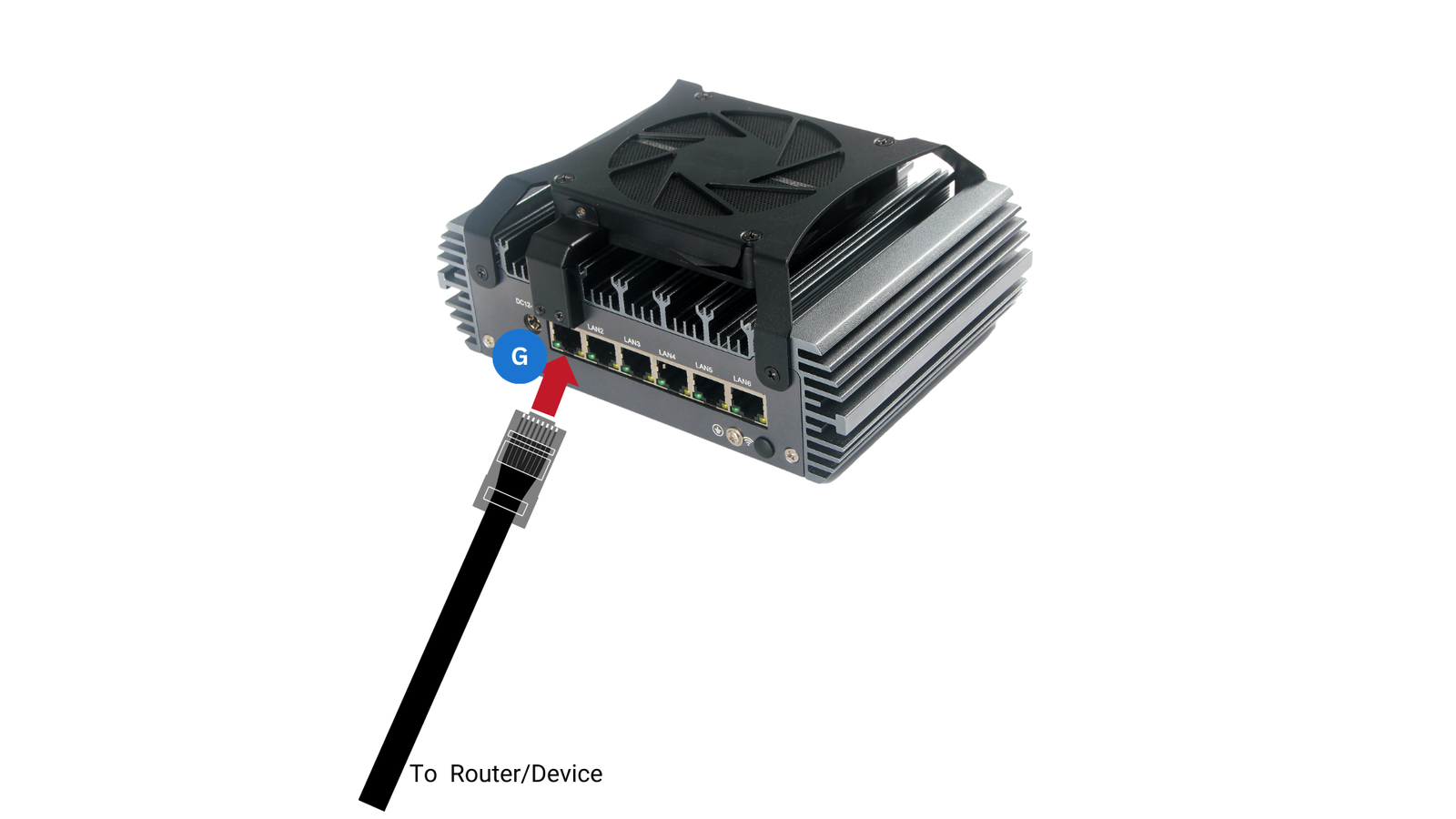

Connecting LAN #

Connect the Ethernet cable to LAN port (G) located at the back-side of the Device. Connect the other end of the Ethernet cable to Router for Internet connection or to a device for LAN connection as per your needs.

Power On/Off #

1. Power On – Press the power on button (A) to power on the device.
2. Power Off (Shutdown) – Press the power on button (A) while the device is on to power off the device. This action will gracefully shutdown the device.
3. Power Off – Press & Hold the power on button (A) while the device is on to power off the device immediately.
